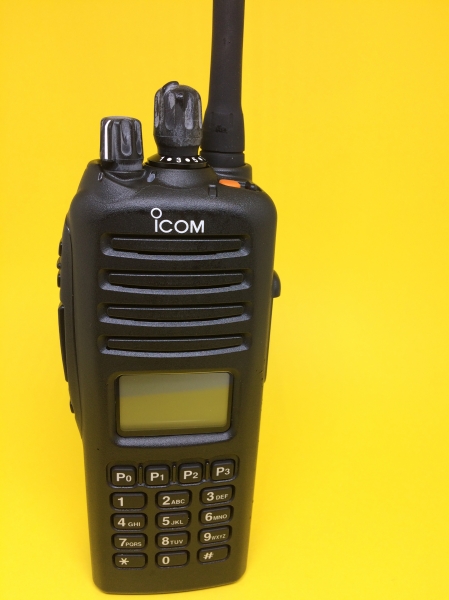

IC-F70DT P25 Portable VHF Radio
256 channels
Public safety grade portable radio, submersible (IP-67) rating. Qualifies for P25 grant funding.
- Fully out-of-the-box P25 capable, nothing to upgrade
- Full suite of MDC and signaling features
- Up to 16 user-defined banks
- Full keypad for direct channel entry
- Large and easy to read LCD dot-matrix display
- Very sophisticated and robust operation
- Rich set of scanning and priority channel features
- Built-in 2-tone encode and decode; perfect for fire departments on a budget
- Full MDC Signaling with 500 unit alias list
The Smart Migration to an APCO P25 Digital Radio System
Project 25 (P25) Digital Features
Interoperability
The IC-F70D, F80D series is APCO Project 25 (P25) compliant. It ensures interoperability with other manufacturer’s P25 digital radios in conventional mode.
Mixed mode operation
The IC-F70D, F80D series is compatible with both analog FM mode and P25 digital mode. Program digital and/or analog FM modes per channel. The mixed mode scan allows you to detect and receive both analog FM and P25 digital modes and to transmit either mode depending on programming.
AES/DES digital encryption activation software
AES and DES are encryption standards required by public safety agencies. The IC-F70D, F80D series provides secure encryption with DES and AES accordingly when activated with EX-2785 J02 (for DES) and EX-2785 J03 (for AES) activation software. Versions certified to FIPS 140-2 level 1 for AES encryption are available.
Upgrade to digital option
The IC-F70D, F80D series is available in two digital versions. One version is P25 compliant out of the box. Version two is an analog only radio* that is future upgradeable to P25 digital compatibility– grow into digital with Icom.
(* Optional UT-120 and EX-2785 J01 required.)
IPX7 waterproof protection
The water removal design from the speaker grill keeps the communication clear, no matter what the elements are. The ICF70/ F80 series has waterproof* construction that is sealed with waterproof gaskets.
* 1m depth for 30 minutes.
Built-in multiple signaling*
Use the built-in CTCSS, DTCS, 2-Tone, 5- Tone and MDC capability to set up your own talk groups and quiet stand-by when others are talking. You can also set up selective calls to individuals or control a repeater.
* Not available in digital mode.
Multiple 2-Tone, Multiple 5-Tone*
Up to 10 2-Tone and 8 5-Tone codes can be decoded on a single memory channel. This is perfect for professionals who require multiple district paging on one channel. When a matched tone is received, the following items are programmable for each code.
• Bell icon
• Answer back
• Stun
• Beep sound
• Auto transmit
• Scan
* Not available in digital mode.
Alphanumeric display
The large high contrast LCD clearly shows a variety of information with a full dot-matrix display. Program the display to show either 1 line with 12 characters or 2 lines with 24 characters. The functions assigned to the P buttons (P0–P3) are shown at the bottom of the display.

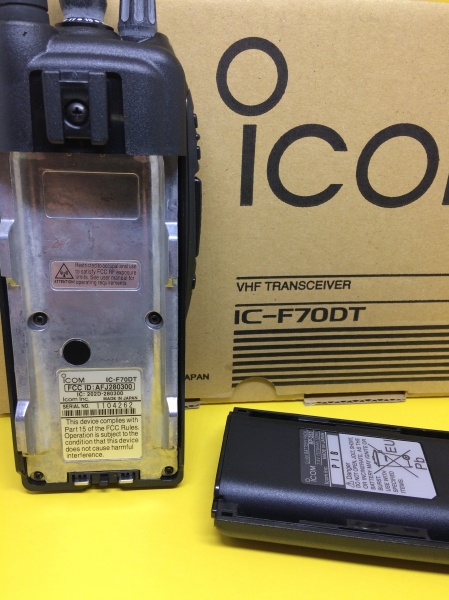

Li-Ion battery pack
The large capacity 1650mAh Lithium-Ion (Li-Ion) battery pack, BP-253 provides a practical 8 hours* of operating time. Li-Ion batteries allow flexible charging and have almost no memory effect.
* Typical operation Tx:Rx: Stand-by=5:5:90
Tactical group function
The tactical group function allows you to copy memory channels to the tactical zone (zone 32) and dynamically regroup memory channels. Using the optional zone copy cable, memory channels in the tactical zone can be transferred from a master radio to other radios.
Built-in voice scrambler*
The IC-F70/F80 series includes a built-in inversion type voice scrambler. When a more secure system is required, the optional voice scrambler unit UT-109 or UT- 110 is available.
* Not available in digital mode.
MDC 1200 compatible*
The following selective calling and ANI features are available with the built-in MDC signaling.
• PTT ID/Caller ID
• Radio check
• Selective call
• Call alert
• Emergency, emergency mic monitoring
• Emergency man down (with UT-124)
• Radio stun/revive
• 500 Aliases
• Status/message
• Call log
* Not available in digital mode.
Intrinsically safe version
Intrinsically safe version approved by FM Approvals, is suitable for use in hazardous areas where flammable gasses or liquids are used.
Radio stun/kill function* and Power-on password
The radio stun/kill functions* disable a lost or stolen radio over the air, eliminating security threats from undesired listeners. The power-on password prevents unauthorized people turning on the radio.
* Not available in digital mode.
Other features
• 256 memory channels with 32 zones
• Built-in audio compander*
• 8 DTMF autodial memories
• Normal and priority scans
• Busy, repeater lockout functions
• Wide and narrow (25/12.5kHz) channel spacing is programmable
* Not available in digital mode.
