MFJ-264, DUMMY LOAD, 1.5 kW, 1-650 MHz, SO-239, DRY

MFJ-264, DUMMY LOAD, 1.5 kW, 1-650 MHz, SO-239, DRY

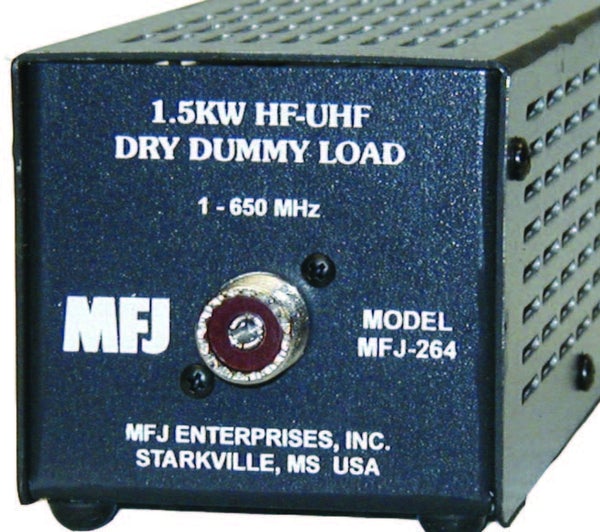

The MFJ-264 is ham radios most versatile 50 Ohm dummy load. It does it all -- works with all radios from 1 MHz through 650 MHz and from QRP to the full 1500 Watt legal limit. The MFJ-264 has a SO-239 connector.
You get SWR below 1.3 to 650 MHz and 1.1 at 30 MHz. Handles 100 Watts for 10 minutes, 1500 Watts for 10 seconds. It has a strong lightweight aluminum construction. The MFJ-264 Dry Dummy Load measures 3Wx3Hx9D inches and comes with MFJs famous No Matter What one year limited warranty.

Specifications



• IMPEDANCE: 50 OHMS VSWR: Less than 1.3:1 at less than 650 MHz

• POWER DISSIPATION: 1500 Watts for less than 10 seconds -- 100 Watts for 10 minutes

• VOLTAGE GRADIENT: 10 kV / inch

• OPERATING TEMPERATURE: Up to 350C

• FREQUENCY RANGE: 1-650 MHz; usable to 750 MHz
