IC-F4001 Entry Level Analog Portables VHF/UHF

Icom

PRICE UPON REQUEST
This product will be shipped from: USA (International shipping restrictions may apply). Sold and shipped by Radiohaus America
Indicar produto
Dúvidas?
Aumentar fonte Diminuir fonte

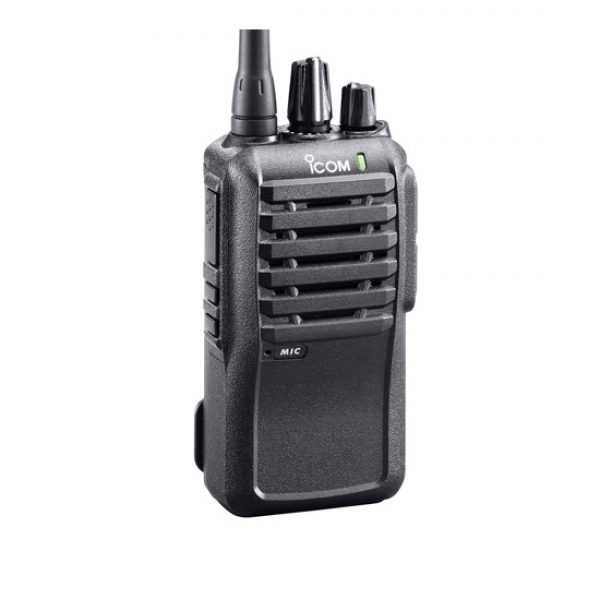

IC-F4001 Entry Level Analog Portables VHF/UHF

Affordable, High Performance Analog Portables

The F3001/F4001 Series is easy to use entry level portable with no special training required. The few knobs and buttons are generously sized for easy operation. This simple interface makes it ideal for high turnover environments and shift work where the radio is constantly passed from person to person. The radio series is ideal to meet the needs of schools, retail, golf courses, community centers and others with similar basic radio needs.

Channels:

  16

Output Power:

  5W (VHF) / 4W (UHF)

Frequencies:

  136-174, 400-470 or 450-512MHz

Waterproof Rating:

  IP54

Programmable Keys:

  3

Hands Free Operation

The radio has the internal VOX capability for hands-free operation. Optional compatible headset with plug adapter cable OPC-2004 can be used with the radio. Also, the VOX gain and VOX delay time are adjustable.

Built-in Signaling

The F3001 series comes all the popular signaling including 2-Tone, 5-Tone, CTCSS, DTCS and MDC1200 PTT ID & emergency. The radio’s 2-Tone and 5-Tone signaling gives you selective calling, quiet stand-by and other convenient functions with programming. The radio "stun" function disables a radio over the air and the "revive" function restores the stunned radio.

Additional Features

  • Priority scan
  • DTMF autodial
  • Low battery alert
  • Talk around function
  • Enhanced emergency
  • Surveillance function
  • 2-step power save
  • Time out timer
  • Lone worker function
  • 3-color LED

Icom Taking it to the Extreme - Rugged Radios for Rugged Terrain

A South American resort implements an Icom repeater and radios for their HeliSkiing operation. Radios featured include the F4001, F50 and F5021.



Specifications



General
Frequency coverage
(Rx and Tx)
F3001
136–174MHz
F4001
400-470MHz
450-512MHz
Number of channels Total 16
Type of emissions 16K0F3E/11K0F3E
Channel spacing F3001 12.5 kHz, 15/30 kHz
F4001 12.5 kHz
PLL channel step F3001 2.5 kHz, 3.125 kHz (VHF)
F4001 5 kHz, 6.25 kHz (UHF)
Power supply requirement 7.2V DC nominal
Current drain
Receive


Transmit
F3001
70 mA (standby)
250 mA (rated audio)
1.25 A (high)
F4001
70mA (standby)
330mA (internal SP)
1.3A (high)
Antenna impedance 50Ω
Operating temperature range -30°C to 60°C; –22°F to +140°F
Dimensions (W×H×D) 2.28 x 4.38 x 1.41 in (with BP-265)
Weight  9.5 oz (with BP-265)
Transmitter
Spurious emissions 70dB typ.
Max. frequency deviation ±5.0 kHz/±2.5 kHz (wide/narrow)
Frequency stability ±2.5ppm
FM hum and noise 46/40dB typ. (wide/narrow)
Output power 5 W, 2W or 1W (Hi, L2, L1)
4 W, 2W or 1W (Hi, L2, L1)
Audio harmonic distortion
(AF 1kHz 40% deviation)
1.0/1.5% typ. (wide/narrow)

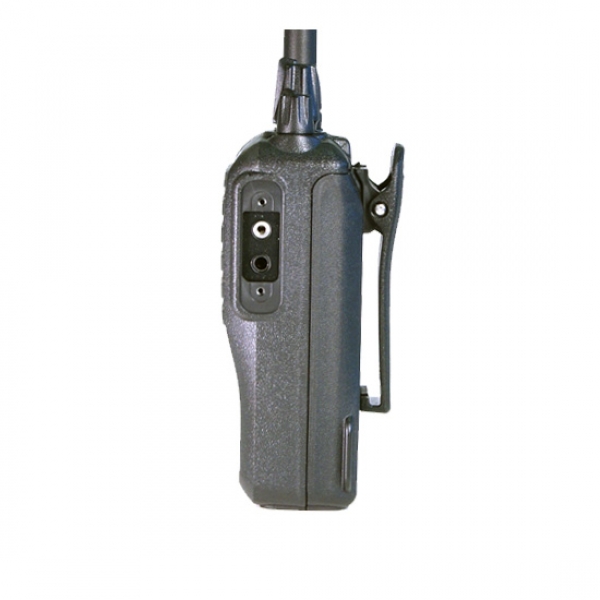

Ext. microphone connector 3-conductor 2.5 (d) mm (1/10")/2.2kΩ
Receiver
Sensitivity 0.25 µV (typ.) at 12 dB SINAD
Adjacent channel selectivity 73/65dB typ. (wide/narrow)
Spurious response rejection 70 dB (typ.)
Intermodulation rejection 74dB typ.
Hum and noise 52/47dB typ. (wide/narrow)
Ext. speaker connector 2-conductor 3.5 (d) mm (1/8")
Audio output power (at 5% distortion)
   Internal SP (w/12Ω load)
   External SP (w/8Ω load)

800mW typ.
400mW typ.

Measurements made in accordance with EAIA-152-C/204D or TIA-603.

Applicable U.S. Military Specifications

Icom makes rugged products that meet MIL-STD requirements and strict environmental standards as follows.

Standard MIL 810 F
Method Proc
Low Pressure 500.4 I, II
High Temp. 501.4 I, II
Low Temp. 502.4-3 I, II
Temp. Shock 503.4 I
Solar Radiation 505.4 I
Rain Blowing/Drip 506.4 I, III
Humidity 507.4
Salt Fog 509.4
Dust Blowing 510.4 I
Vibration 514.5 I
Shock 516.5 I, IV

Also meets equivalent MIL-STD-810-C, -D and -E.

Supplied Accessories

  • Battery Pack: BP-265
  • Antenna

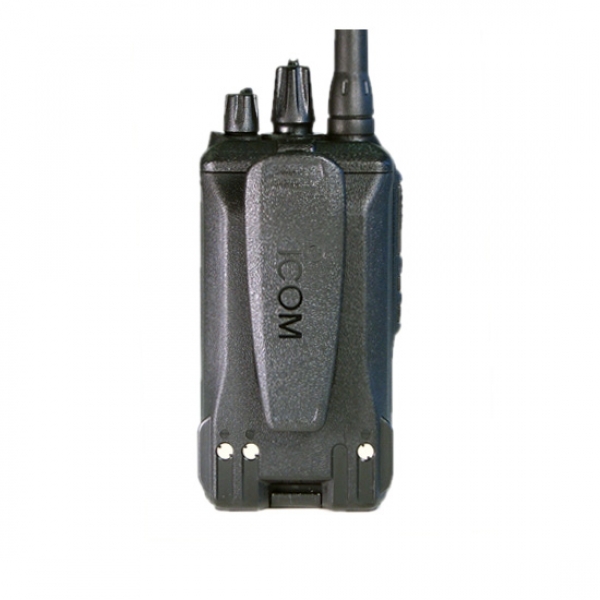

  • Belt Clip: MB-124
  • Charger: BC-193
