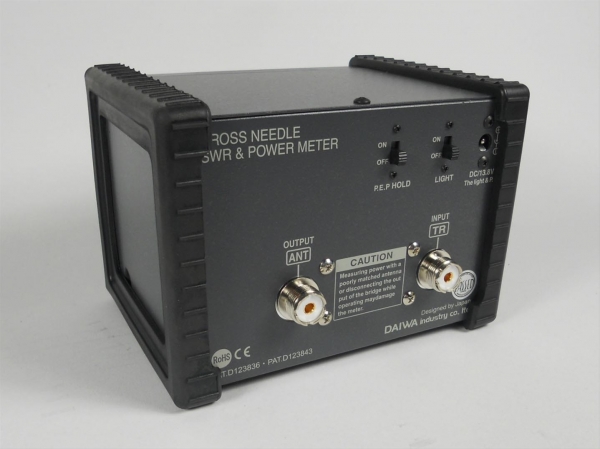

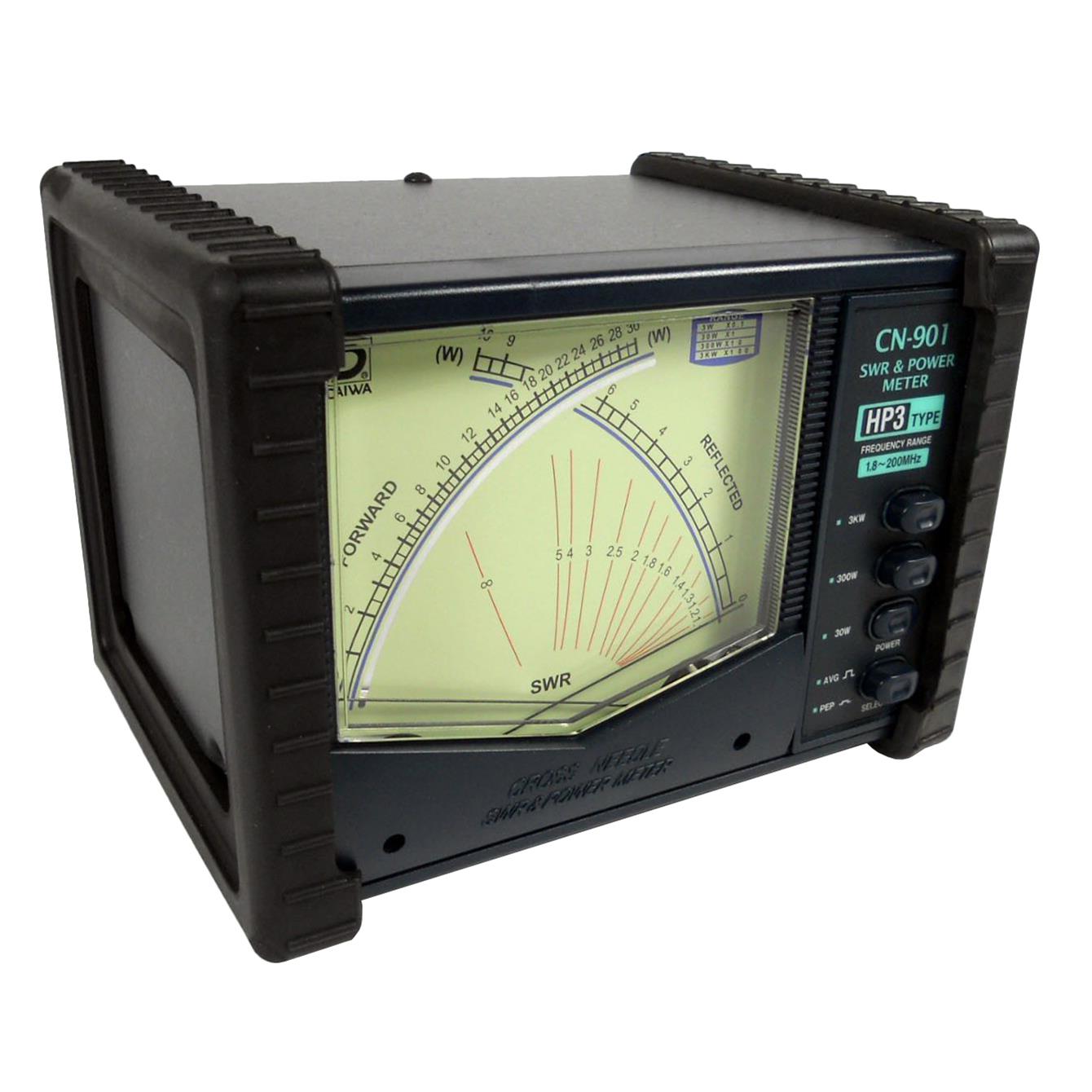

CN-901HP3 SWR/Wattmeter, 1.8-200 MHz, 3,000 W


Daiwa CN-901 Professional Series Bench Meters

Daiwa CN-901 Professional Series Bench Meters offer accurate readings, reliable performance, and great value.

Daiwa's large, lighted and easy-to-read cross needle meters will provide your ham shack with consistent readings. CN-901 Series meters feature qualities that will make measuring SWR and power during an antenna test, as well as matching and tuning transmitters, an easy task.

Their dual-needle meters have one scale that measures forward power while the other reads reflected power. The SWR is indicated at the crossing point of the two needles… so you can read all three of these important measurements at the same time!

Their HP models can also measure P.E.P. That's peak power in SSB operation. A DC cable with 2.5mm plug is included. There are also several frequency-ranges and power levels in the Daiwa CN-901 professional series family to choose from.

Brand: Daiwa Products
Manufacturer's Part Number: CN-901HP3
Part Type: SWR/Wattmeters
Product Line: Daiwa CN-901 Professional Series Bench Meters
Meter Frequency Range: 1.8-200 MHz
Minimum Power Range: 30 W
Middle Power Range: 300 W
Maximum Power Range: 3,000 W
Meter Style: Cross needle
Meter Illumination: Yes
Peak Power Readout: Yes
Peak Hold: Yes
Built-In Frequency Counter: No
Meter RF Connector Type: UHF female, SO-239
DC Power Required: Yes
External Power Input Voltage: 13.8 Vdc
Remote Sensor Included: No
SWR/Wattmeter Width: 6.300 in.
SWR/Wattmeter Height: 4.300 in.
SWR/Wattmeter Depth: 4.800 in.
SWR/Wattmeter Weight: 2.20 lbs.
Quantity: Sold individually.
