IC-M85ULVHF Handheld

Icom

PRICE UPON REQUEST
This product will be shipped from: USA (International shipping restrictions may apply). Sold and shipped by Radiohaus America
Indicar produto
Dúvidas?
Aumentar fonte Diminuir fonte

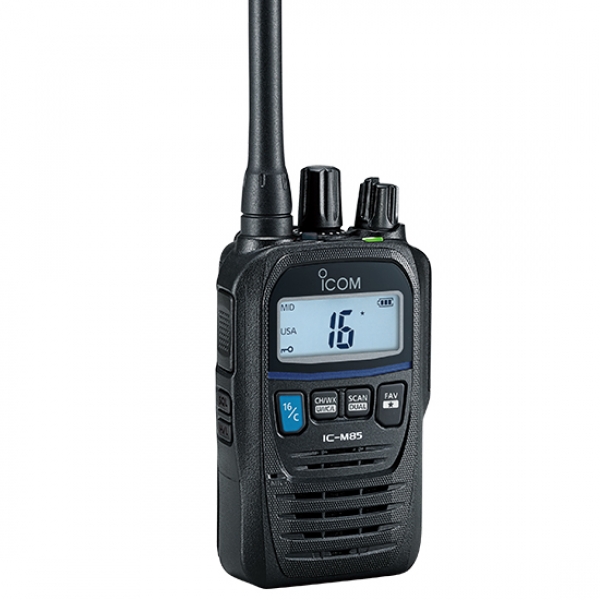

IC-M85ULVHF Handheld



Marine’s Smallest Waterproof Handheld

The M85 is the smallest, lightest and toughest radio on the market today!

The M85 can withstand hazardous and inhospitable environments at sea and on land, as it is built to MIL-STD 810. The IP67 waterproof rating protects the radio, even if dropped in the water. Yacht and commercial customers like the M85 because of the 100 programmable land mobile channels, as well as the easy to use built-in voice scrambler for private communications. The M85 is full of the features you need including an automated emergency alarm.

Output Power:


  Marine: 5/3/1W
Land Mobile: 2/1W

Battery Life:

  2010mAh Li-ion battery, up to 14 hours
Typical operation; Tx:Rx:Stand-by duty ratio = 5:5:90

Waterproof Rating:

  IP67

Versions:

  Standard version or intrinsically safe version

Full Featured

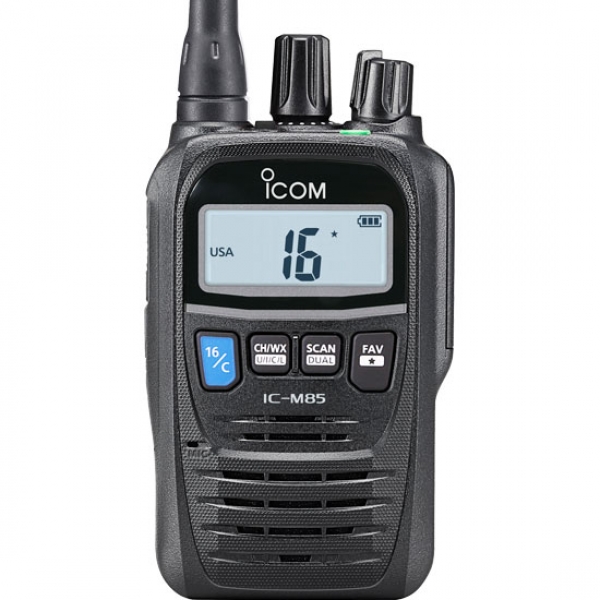

The M85 user-friendly display includes icons and indicators like transmit power, VOX ON/OFF, battery status, scan, weather channel and more. These icons and indictors improve the user-experience and operation. The M85 also includes a continuous 20-position rotary selector and ON/OFF volume knob, which is tilted for easy access.

For emergency situations the M85 includes the MOB Alarm, Man Down and lone worker functions. If one of these functions is activated, the radio automatically makes an emergency alarm.

The M85* built-in voice scrambler provides private communications between stations. The multi-function button on the top of the radio can be assigned to the scrambler function for easy activation. Or use the multi-function button to simply change from marine to land mobile frequencies.

*The M85UL does not include the built-in voice scrambler.

Land Mobile Use

In addition to VHF marine channels, the M85 covers 136–174MHz land mobile frequencies. Up to 100 programmable channels are available for land mobile use at 2W output power. Each channel is programmable with CTCSS and DTCS tone. Proper licensing is required to operate within the above land mobile frequencies.

Intrinsically Safe Version

Built to withstand the elements, the submersible M85UL intrinsically safe VHF handheld is perfect for commercial customers working in harsh environments. The M85UL plus the BP292UL, HM184UL all meet ANSI/TIA-4950-A, ANSI/UL 121201 requirements for:

  • Intrinsically safe: Class I, Division 1, Groups C, D;
  • Class II, Division 1, Groups E, F, G;
  • Class III. T3C.
  • Non-incendive: Class I, Division 2, Groups A, B, C, D



Additional Features

  • AquaQuake™ prevents water-logged speaker
  • Internal VOX capability for hands-free operation
  • Weather channel receiving
  • Self check function checks internal temperature and connected battery voltage
  • Priority scan function
  • Dual/tri-watch function for monitoring CH16 and/or call channel
  • Favorite channel function for quick access to often used channels
  • Built-in voice scrambler (32 codes)*
  *Not available on M85UL



Specifications



General
Frequency coverage
  Marine Tx
  Marine Rx
  Land Mobile Tx/Rx

156.025–157.425 MHz
156.050–163.275 MHz
136.000–174.000 MHz
Usable channels
  Marine Channels Tx/Rx

  Land Mobile Channels Tx/Rx

INT, USA*, CAN, WX* channel
(* Varies according to version)
100 LMR channels
Type of emissions (Channel spacing)
  Marine
  LMR

25 kHz
12.5 kHz
Antenna Impedance 50Ω
Current drain
  Marine Tx
  Land Mobile Tx
  Rx Max. audio

1.5A (at 5W)
0.9A (at 2W)
0.45A
Power supply requirement 7.2 V DC nominal
Operating temperature range
  Marine
  LMR

–20 °C to +60 °C; –4 °F to +140 °F
–30 °C to +60 °C; –22 °F to +140 °F
Antenna Impedance 50Ω
M85
Dimensions (W×H×D)
(Projections not included)

M85UL
Dimensions (W×H×D)
(Projections not included)

56 × 92 × 29 mm;
2.2 × 3.6 × 1.1 in (With BP-290)


56 × 92 × 34.1 mm;
2.2 × 3.6 × 1.3 in (With BP-292UL)
M85
Weight (approx.; with BP-227)

M85UL
Weight (approx.; with BP-227)



246 g; 8.7 oz (with BP-290, FA-SC58V and MBB-3)


285g, 10.1 oz (with BP-292UL, FA-SC58V and MBB-3)
Transmitter
  Marine channels
  LMR channels

5/3/1W
2/1W
Max. frequency deviations
  Marine channels
  LMR channels

±5.0 kHz (Wide)
±5.0 kHz (Wide) / 2.5 kHz (Narrow)
Frequency stability ±5.0 ppm
Spurious emissions -70 dBc typical
Hum and noise
  Marine channels
  LMR channels

40 dB
40 dB (Wide) / 34 dB (Narrow)
Audio harmonic distortion 10% (at 60% deviation)
Modulation limiting 60–100% of maximum deviation
Receiver
Sensitivity (at 12dB SINAD) 0.25 µV typical
Adjacent Channel Selectivity
  Marine channels
  LMR channels

70 dB typical
70 dB typical (Wide) / 55 dB typical (Narrow)
Spurious response 70 dB typical
Intermodulation 70 dB typical
Hum and noise
  Marine channels
  LMR channels

40 dB
40 dB (Wide) / 34 dB (Narrow)
Audio output power
  Internal SP
  External SP

700 mW typical (at 10% distortion with 12Ω load)
700 mW (at 10% distortion with 8Ω load)

Measurements made in accordance with TIA/EIA-603. All stated specifications are subject to change without notice or obligation.

Applicable U.S. Military Specifications & IP Rating

Standard MIL 810 G
Method Proc
Low Pressure 500.5 I, II
High Temperature 501.5 I, II
Low Temperature 502.5 I, II
Temperature Shock 503.5 I-C
Solar Radiation 505.5 I
Rain Blowing/Drip 506.5 I, III
Humidity 507.5 II
Salt Fog 509.5
Dust Blowing 510.5 I
Immersion 512.5 I
Vibration 514.6 I
Shock 516.6 I, IV

Also meets equivalent MIL-STD-810-C, -D, -E and -F.

Ingress Protection Standard
Dust & Water IP67 (Dust-tight and waterproof protection)

Supplied Accessories

M85 M85UL - Intrinsically Safe
Battery Pack, BP-290
Rapid Charger, BC-227
AC Adapter, BC-123S
Antenna, FA-SC58V
Belt Clip, MBB-3
Hand Strap
Battery Pack, BP-292UL
Rapid Charger, BC-227
AC Adapter, BC-123S
Antenna, FA-SC58V
Belt Clip, MBB-3
Hand Strap
