IC-M510 VHF Marine Transceiver
Fixed Mount VHF with Wireless Smart Device Operation
Icom’s new Class D DSC fixed mount VHF marine transceiver, the M510 is a tech-laden powerhouse available with or without AIS receive capability. The M510 is nearly half the depth of the M506, allowing installation in more confined spaces. The large color display has a simple user interface allowing casual and serious boaters alike with plenty of options to communicate. Additionally, command and control using iOS® and Android™ smart devices with class leading features such as wireless calling.
|
Output Power:
|
|
25W |
|
Waterproof Rating:
|
|
IP68 |
|
Hailer:
|
|
Optional with CT-M500 |
|
Horn/Foghorn:
|
|
Optional |
|
GPS:
|
|
Built-in |
|
WLAN:
|
|
Built-in |
|
NMEA:
|
|
NMEA 0183®/-HS Built-in, NMEA 2000® optional with CT-M500 |

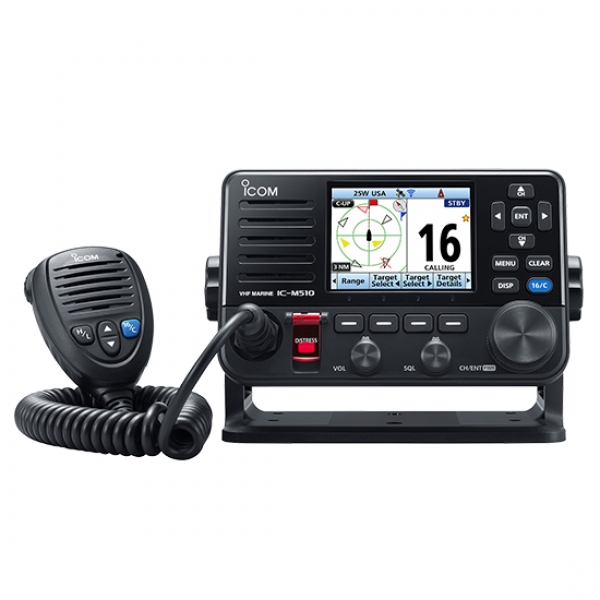

Large Color Display
The M510 includes a full color 3.5" TFT LCD screen with a near 180-degree viewing angles. The standard marine user interface is enhanced with animated functions and night mode for optimal viewing in the dark.
Integrated Automatic Identification System
Use the M510 AIS version to access real-time vessel traffic information to stay up to date on travel information. Directly call an AIS target when using an individual DSC call. Reduce on the amount of marine hardware with an AIS and VHF two in one.

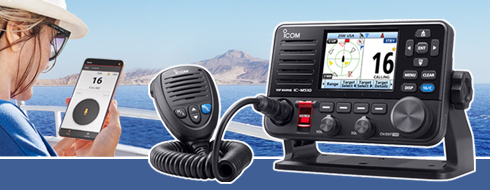

Command and Control

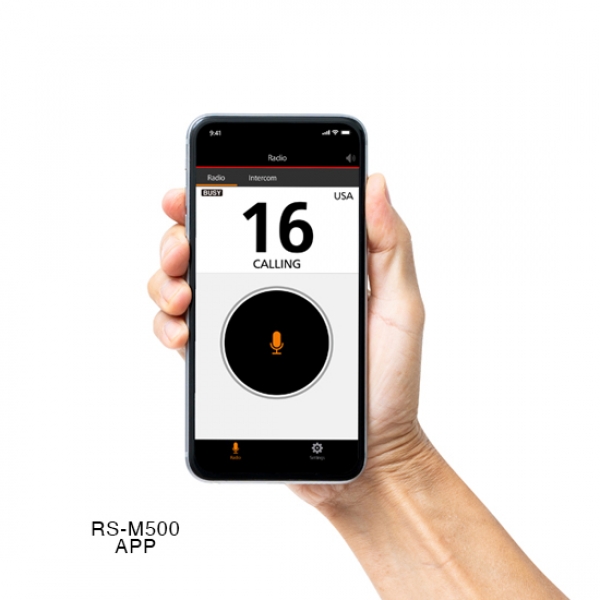

The RS-M500 app allows you to connect three iOS® or Android™ smart devices to function as a wireless command speaker/microphone. Use the push-to-talk features, scroll/scan channels, as well as use the M510’s intercom function from the comfort of the captain’s seat. Additionally, one COMMANDMIC™ can connect while 3 other smart devices are linked.
CT-M500 Wireless Interface w/NMEA 2000®
Connect to NMEA 2000® with the optional CT-M500 wireless interface box. If the NMEA connection is on a different part of the boat, the CT-M500 can wirelessly connect with the M510, providing flexibility on placement. Additionally, with the optional SP-37 horn speaker, the CT-M500 can access the two-way hailer/PA functions.
Other Features
- MMSI reset dongle
- Hand microphone with AquaQuake™

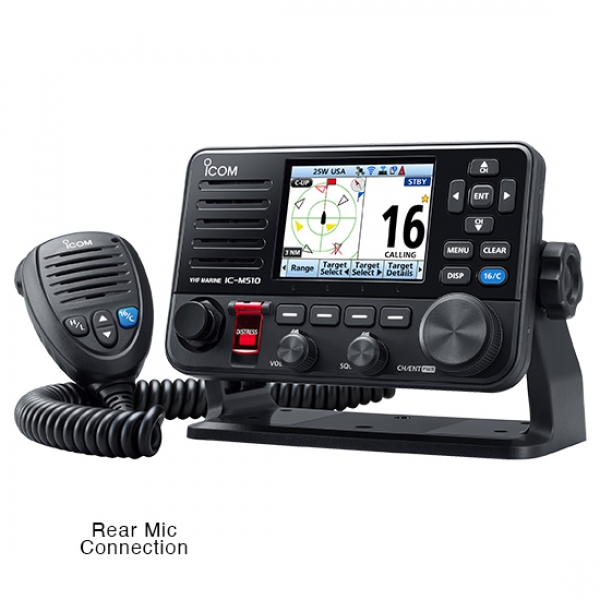

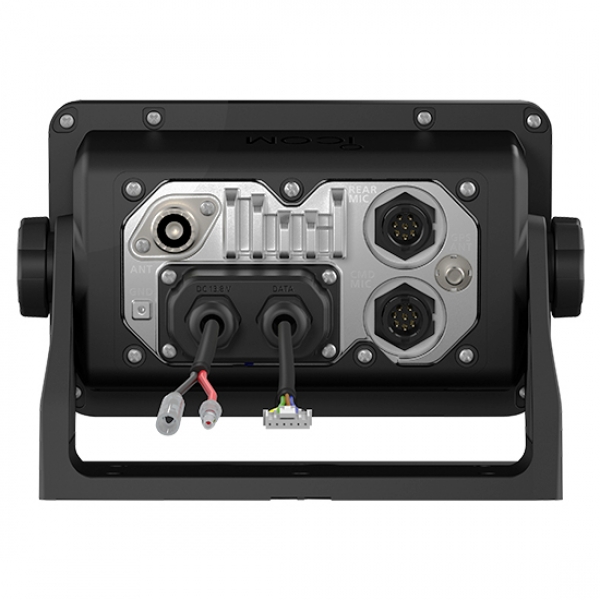

- Front and back microphone connection ports
- Optional voice scrambler
- External speaker connection
- Supports 4-digit channels
- Option to connect external GPS
- VE-PG4 compatible
Specifications
| General |
Frequency range
Tx
Rx
DSC
AIS1*, 2** |
156.025 – 157.425 MHz
156.050 – 163.275 MHz
156.525 MHz
161.975 MHz, 162.025 MHz |
| Usable channels |
USA, INT, CAN, WX channels |
| Type of emission |
16K0G3E (FM), 16K0G2B (DSC), 16K0GXW (AIS)* |
| Power supply requirement |
13.8V DC (11.7–15.9V DC) |
Current drain
TX (25W output)
RX (Max. Audio) |
5.0A
3.3A |
| Operating temperature range |
–20°C to +60°C; –4°F to +140°F |
| Antenna impedance |
50Ω |
| Weight (approx.) |
730g; 1.6 lbs (Not including microphone) |
| Transmitter |
| Output power (at 13.8V DC) |
25W, 1W |
| Max. frequency deviation |
±5.0 kHz |
| Frequency tolerance |
±0.5 kHz |
| Spurious emissions |
Less than -70 dBc (at 25W) |
| Residual modulation |
More than 40 dB |
| Adjacent channel power |
More than 70 dB |
| Receiver |
Sensitivity (at 12dB SINAD)
DSC (1% BER) |
0.32 µV typical
0.89 µV emf typical |
Adjacent channel selectivity
DSC (1% BER) |
More than 75 dB
More than 73 dBµ emf |
Spurious response
DSC (1% BER) |
More than 75 dB
More than 73 dBµ emf |
Intermodulation
DSC (1% BER) |
More than 75 dB
More than 68 dBµ emf |
| Hum and noise |
More than 40 dB |
Audio output power
at 10% distortion |
More than 15W with a 4Ω external speaker |
| Wireless LAN |
| Wireless LAN standard |
IEEE 802.11 b/g/n |
| Authentication and Encryption |
WEP (64/128 bit), WPA-PSK (TKIP), WPA2-PSK (AES) |
| Channels |
1 to 13 (2.4 GHz band)** |
| Output power |
Less than 10 mW/MHz |
* 1 - Only for the Integrated AIS version.
** 2 - May differ depending on the country of use.
Measurements made in accordance with TIA/EIA-603. All stated specifications are subject to change without notice or obligation.
Applicable U.S. Military Specifications & IP Rating
| Standard |
MIL 810 G |
| Method |
Proc |
| Low Pressure |
500.5 |
I, II |
| High Temp. |
501.5 |
I, II |
| Low Temp. |
502.5 |
I, II |
| Temp. Shock |
503.5 |
I-C |
| Solar Radiation |
505.5 |
I |
| Rain Blowing/Drip |
506.5 |
I, III |
| Humidity |
507.5 |
II |
| Salt Fog |
509.5 |
– |
| Dust Blowing |
510.5 |
I |
| Immersion |
512.5 |
I |
| Vibration |
514.6 |
I |
| Shock |
516.6 |
I, IV |
Also meets equivalent MIL-STD-810-C, -D, -E and -F.
Applicable IP Rating
| Ingress Protection Standard |
| Dust & Water |
IP68 Dust-tight and waterproof protection |
Supplied Acessories
- Speaker microphone, HM-205RB
- Microphone hanger
- DC Power Cable
- Mounting Bracket Kit
