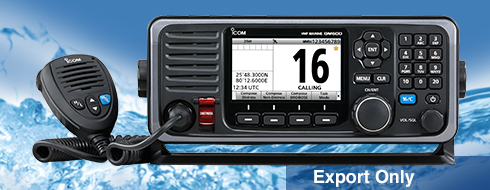

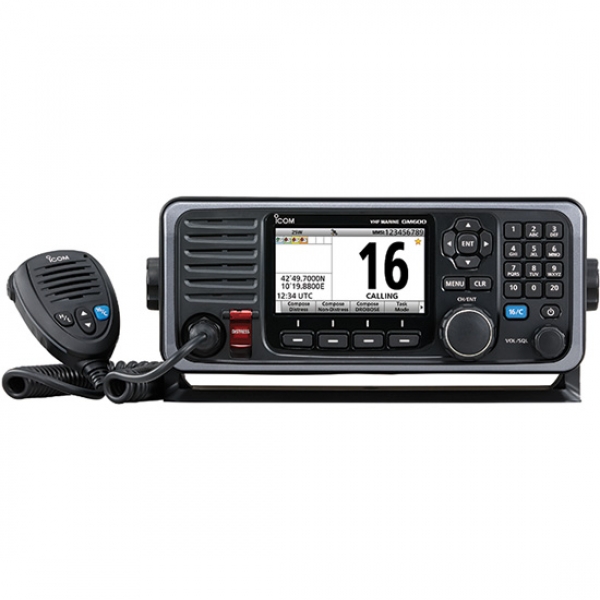

IC-GM600 GMDSS Fixed Mount
The Latest GMDSS Functionality in a Very User-Friendly Package - Export Only

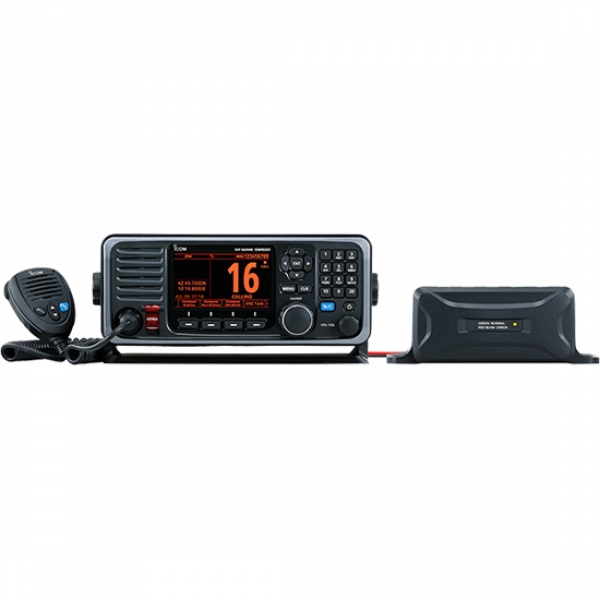

The GM600 meets the GMDSS requirements as required for SOLAS regulated commercial vessels engaging in international voyage. With the optional PS- 310 DC-DC converter, the GM600 meets the MED, "wheel mark" requirements for European merchant ships.
|
Output Power:
|
|
25W |
|
DSC Rating:
|
|
Class A |
|
NMEA:
|
|
NMEA 0183® interface for GPS connection |
|
Waterproof Rating:
|
|
IPX7 (front panel only) |
Dedicated Distress Button
The GM600 meets ITU class A DSC. The radio includes a dedicated DSC receiver which continuously monitors CH 70 and is independent of the main receiver and other operation. The DSC Multi-task function allows you to show up to 7 received and transmitted DSC messages. While using the DSC Multi-task screen, the operating channel is shown at the right side of the screen.
Large User Rriendly Display
The GM600 comes with a 4.3" color TFT LCD with user-friendly icons. Navigate the menu via the main dial knob or the up and down keys. The most used functions are lined up at the bottom of the display and users can toggle with the left and right keys. The display also allows you to select the day and night modes according to how light it is outside.
Additional Features
- Large speaker for clear audio
- 10W audio output when plugged into external speaker
- DC-DC power supply option for floating ground connection
- Printer connector (D-sub 25-pin)
- VDR (voyage data recorder)/external SP connector
- Dual watch & tri watch functions
- Instant access to CH 16 and call channel
- Tag scan and favorite channel functions
- Auto scan function
Specifications
| General |
Frequency Range
Tx
Rx
CH70 |
156.025–161.600 MHz
156.025–162.000 MHz
156.525 MHz |
| Usable channels |
INT channels |
| Type of emission |
16K0G3E (FM), 16K0G2B (DSC) |
Power supply requirement
Tx (at 25W output)
Rx (Maximum audio) |
13.8 V DC (GM600)
24 V DC (21.6–31.2 V)
12 V DC (10.8–15.6 V) |
Current drain (with PS-310 #01)
Tx (at 25W output)
Rx (Maximum audio) |
(approximately)
3.3A (with PS-310 #01)
2.0A (with PS-310 #01) |
| Operating temperature range |
–15°C to +55°C |
| Antenna Impedance |
50Ω (SO-239) |
| Weight (approximately) |
1600g |
IEC 61162-1 in/out format
Input
Output |
RMC, GGA, GNS, GLL, VTG
DSC, DSE |
| Transmitter |
| Output power |
25W, 1W |
| Max. frequency deviation |
±5 kHz |
| Frequency error |
Less than ±0.5kHz |
| Spurious emissions |
Less than 0.25μW |
| Adjacent channel power |
More than 70dB |
| Residual modulation |
More than 40dB |
| Audio harmonic distortion |
Less than 10% (at 1 kHz, 60% deviation) |
| Receiver |
| Intermediate frequency
DSC receiver
|
30.15MHz, 450kHz (1st/2nd)
46.35MHz, 450kHz (1st/2nd) |
| Sensitivity 20dB SINAD
DSC (1% BER)
|
Less than –7dBμ emf. typ.
Less than –7dBμ emf. typ. |
| Adjacent channel selectivity
DSC receiver
|
More than 75dB
More than 73dBμ emf |
| Spurious response
DSC receiver
|
More than 75dB
More than 73dBμ emf |
| Intermodulation
DSC receiver
|
More than 75dB
More than 73dBμ emf |
| Hum and noise ratio |
More than 40dB |
| Audio output power
External speaker
Internal speaker
|
(at 10% distortion)
10 W (4 Ω load)
2 W |
Measurements made in accordance with EN 301 925. These specifications are described when the GM600 is used with the PS-310. All stated specifications are subject to change without notice or obligation.
Applicable IP Rating
| Ingress Protection Standard |
| Water |
IPX7 (1m depth of water for 30 minutes - front panel only) |
Supplied Accessories
- Hand microphone, HM-214V
- Mounting bracket kit
- DC power cable
